- µGemX-150 generator [ 150 kV - 1 mA - 200 μm - battery operated ]

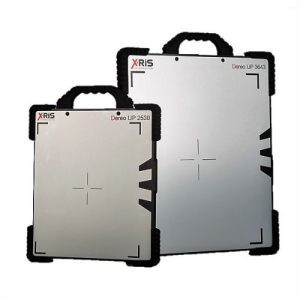

- Dereo UP 2530 or 3643 flat panel [ @Si - 100 μm - DRZ fine - armor - battery operated ]
- Industrial TouchPad with MaestroTouch
This system was developed for Airbus in collaboration with the BAM. With a focal spot of 150 μm (IEC 60336:2005), a pixel of 100 µm, the averaging functionnality of the flat panel, and Maestro, this system is the best X-ray solution in portable NDT.
Electronical components are sensitive to ionizing radiations. If not properly desgined the lifetime of flat panels can be significantly reduced. Most of them are shielded up to 160 keV internally.

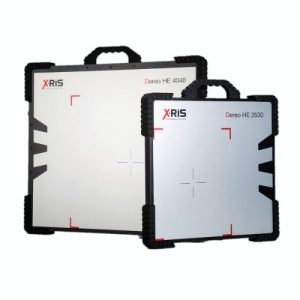

Dereo HE (for High Energy) has been designed in such a way that the electronical components sensitive to X-rays have been deported next to the active area where they can be shielded. With this design and the appropriate shielding, Dereo HE can work safely in heavy duty with X-ray generators up to 450 kV (or more), Linear accelerators and Se-75 or Ir-192.
Dereo HR is an ultra compact panel with pixels of 48 and 96 µm and a particularly innovative concept: the CMOS reading head and the electronic board have been separated in two modules. This gives a maximum compactness to the reading head the dimensions of which are only 13 x 5 cm x 2 cm.
[upgrade from film to digital]

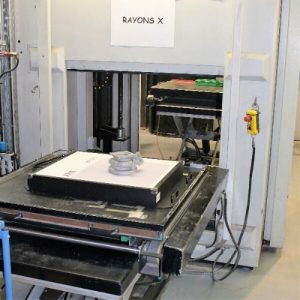

A simple and efficient solution to upgrade your existing X-ray inspection cabinet to digital: installation and the complete training can be done in 2 days and your X-ray generator and recipie protocols can be integrated in our software. You will also take benefit of the user-friendliness of image treatments of Maestro to master digital technology. The whole solution is NADCAP, PR5250 and BS7044 compliant. Solutions can be provided up to 600 kV.
[upgrade from image intensifier to flat panel]

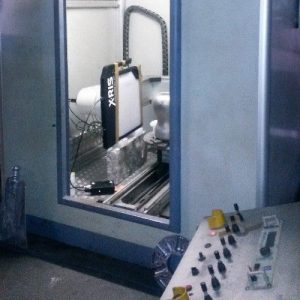

Image Intensifier is an old-fashioned technology in comparison with flat panel detectors for spatial resolution, contrast resolution, number of frames per second and sensitivity. Dereo RT active area goes from 15 x 15 cm to 25 x 30 cm with pixels ranging from 127 µm to 200 µm. Maestro can control any generator and work in fluoro mode. Its real time filters will provide the best image quality.

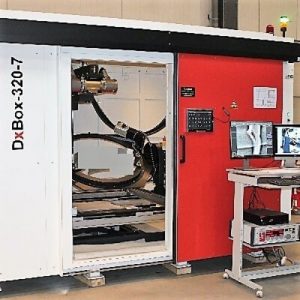

Dxbox-320-6 is a fully automatic system with 6 axes that was developed for the inspection of inconel parts. The inspection that was taking 8 hours with films takes 15 minutes now.
Dxbox-225-R4 comprises a Robot that positions a C-arm (with the X-Ray generator and the flat panel) around a Ti stator that can rotate.

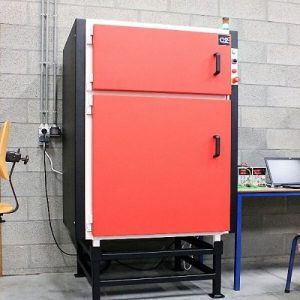

Dxbox-200 is a basic shielded X-Ray cabinet. It can be used with all our portable and fixed monobloc X-ray generators (GemX, µGemX, GXC and µGXC up to 200 kV) and with all our Dereo detectors. It can be supplied with a motorized collimateur and with calibration plates. Magnification can be easily performed to increase the system SRb.
X-RIS is currently leading the project ADRIC (Automatic Defect Recognition in Industrial Control) with several universities and companies active in the image treatment with the support of several end-users of X-Ray technologies to develop a user-friendly and 100 % accurate ADR.
